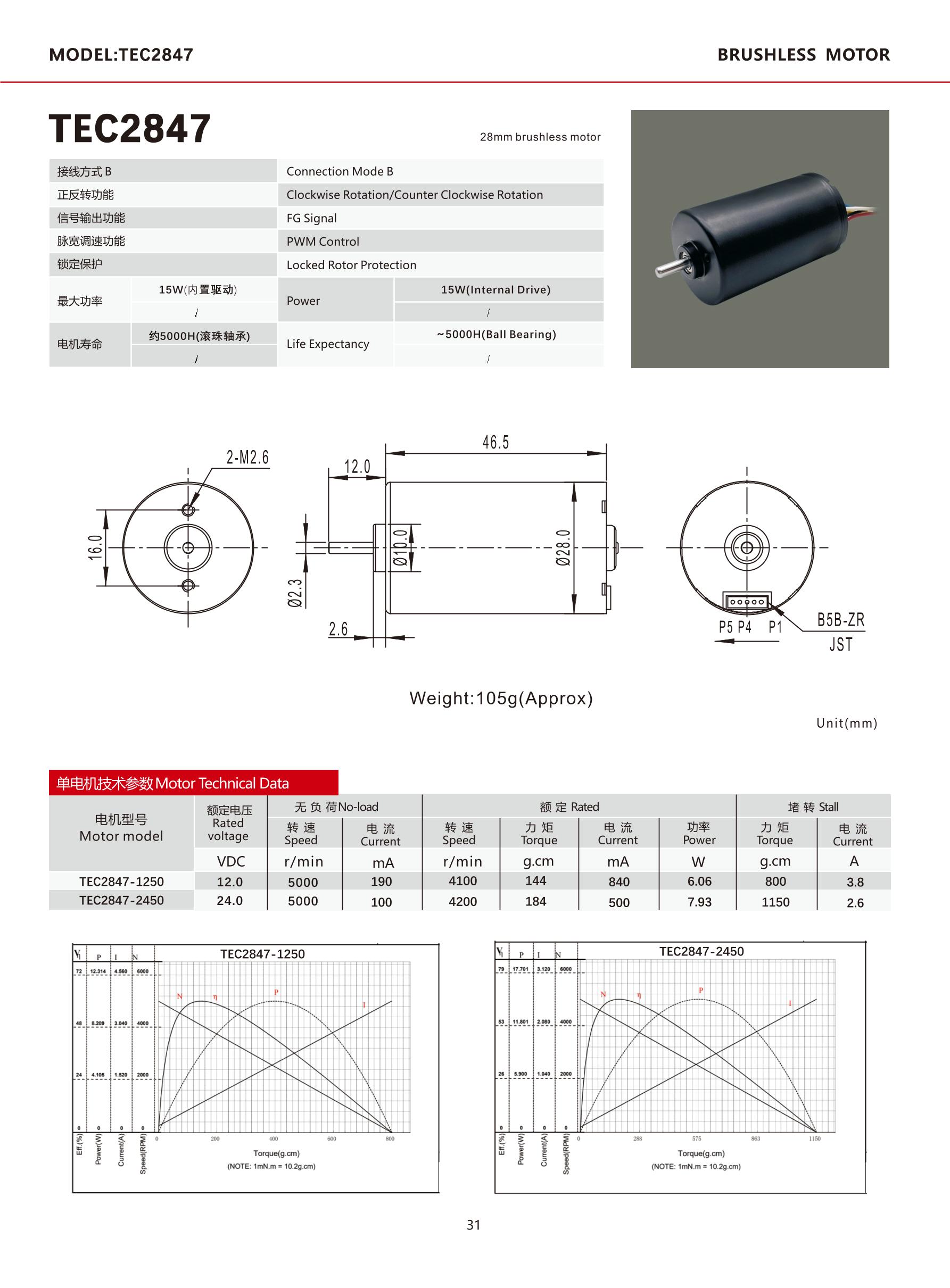

TEC2847 28mm Dia Long Life High Torque DC Brushless Motor
TEC2847 is a miniature brushless DC motor with low speed but high torque. The motor diameter is 28mm and the overall length is 47mm. This motor is extremely efficient, with an effective efficiency of up to 80%-90%, stable performance, and few faults.
In addition, the TEC2847 brushless motor complies with the EU environmental protection and energy-saving power consumption requirements, and the noise is below 30 decibels, so it is considered ultra-low and silent. In addition, it can be equipped with a planetary reduction gearbox, which makes it have stronger torque.
The brushless DC motor is essentially a motor that uses DC power input and uses an inverter to convert it into a three-phase AC power supply with position feedback. This kind of motor has the characteristics of a DC motor in that the current is proportional to the torque and the voltage is proportional to the rotational speed, but in terms of structure, it has the characteristics of an AC motor, combining the advantages of both.
In general, the TEC2847 brushless motor has been widely used in various applications requiring low speed and high torque due to its high efficiency, stability and low noise.
