36mm High Torque DC Planetary Gear Motor
Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Camera and Optical:
Video, Cameras, Projectors.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Medical
Mesotherapy,insulin pump,hospital bed,Urine Analyzer

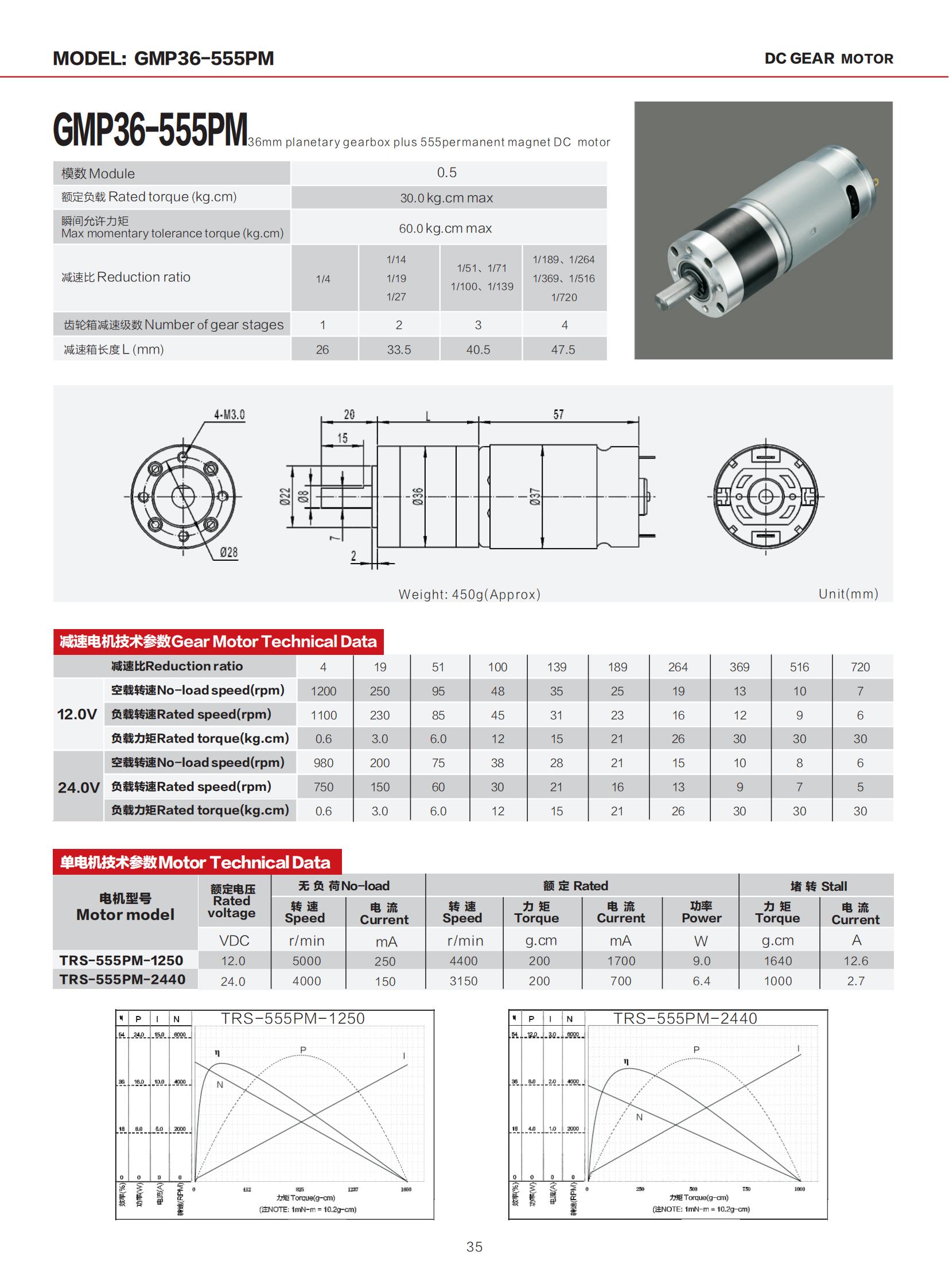

1.Small size dc gear motor with low speed and big torque
2.36mm gear motor provide 6.0Nm torque max and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Dc Gear motors can match encoder,11ppr
5.Reduction Ratio: 4、19、51、100、139、189、264、369、516、720
A planetary gearbox is a frequently employed reducer made up of the planet gear, sun gear, and outer ring gear. Its design has the features of shunting, deceleration, and multi-tooth meshing to increase output torque, greater adaptability, and work efficiency. Usually positioned in the middle, the sun gear imparts torque to the planet gears as they revolve around it. The planet gears mesh with the outer ring gear, which is the bottom housing. We offer additional motors that can be used with a tiny planetary gearbox to improve performance, including brushed DC motors, DC brushless motors, stepper motors, and coreless motors.
Advantages of a Planetary Gearbox
1. High torque: When there are more teeth in contact, the mechanism can handle and transmit more torque more uniformly.
2. Sturdy and effective: By connecting the shaft directly to the gearbox, the bearing can reduce friction. It increases efficiency while allowing for smoother running and better rolling.
3. Remarkable precision: Because the rotation angle is fixed, the rotation movement is more accurate and stable.
4. Less noise: The numerous gears enable more surface contact. Jumping is almost non-existent, and rolling is much softer.
Introducing our latest innovation, the 36mm High Torque DC Planetary Gear Motor! Designed to meet the needs of a wide range of industries, this powerful motor is packed with features that make it one of the best on the market.
First, the motor has a high torque capacity, making it ideal for applications that require a lot of power. It is also equipped with a planetary gear system that enhances its performance, making it more efficient than other motors in its class. This feature also ensures smooth and noise-free operation, making it ideal for use in equipment that requires precision and stability.
What's more, our 36mm High Torque DC Planetary Gear Motor is extremely durable thanks to its long-lasting high-quality materials. The motor's compact size and lightweight design make it easy to install, making it ideal for situations where space is limited.
Additionally, the motor is highly adaptable, offering customizable options to meet your specific needs. It is also suitable for a wide range of applications such as medical equipment, robotics, industrial automation, and more.
At the same time, we have taken all necessary measures to ensure that our 36mm high torque DC planetary gear motors are environmentally friendly. It is energy efficient and has a very low carbon footprint, making it the perfect choice for businesses looking to reduce their carbon footprint.
All in all, our 36mm High Torque DC Planetary Gear Motor is a top-of-the-line product that offers unrivaled efficiency, durability and adaptability, making it an excellent investment that will benefit your business for years to come !
