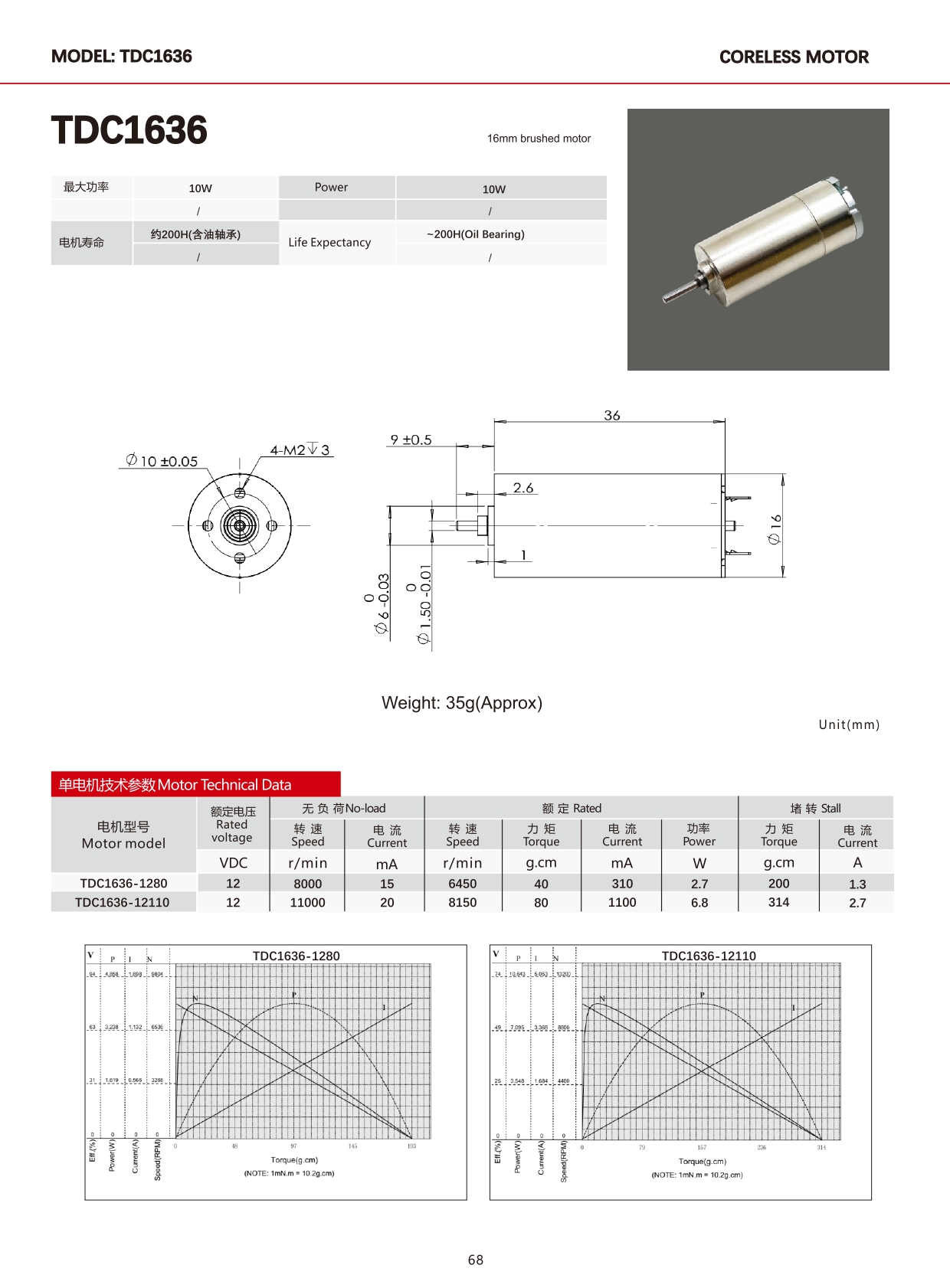

TDC1636 TT MOTOR Factory High Speed Low Noise 16mm*36mm DC Coreless Brushed Motor
Bi-direction
Metal end cover
Permanent Magnet
Brushed DC Motor
Carbon Steel Shaft
RoHS Compliant
TDC series DC coreless brush motor provides Ø16mm~Ø40mm wide diameter and body length specifications, using the hollow rotor design scheme, with high acceleration, low moment of inertia, no groove effect, no iron loss, small and lightweight, very suitable for frequent start and stop, comfort and convenience requirements of hand-held applications. Each series offers a number of rated voltage versions based on customer requirements to give gear box, encoder, high and low speed, and other application environment customization possibilities.
Using precious metal brushes, high performance Nd-Fe-B magnet, tiny gauge high strength enamelled winding wire, the motor is a compact, light weight precision product. This high efficiency motor has a low starting voltage and a low power consumption.
Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Camera and Optical:
Video, Cameras, Projectors.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Medical
Mesotherapy,insulin pump,hospital bed,Urine Analyzer
